Pick the material and enter your router bit's diameter and number of flutes, and this free CNC router feeds and speeds calculator gives you the spindle speed (RPM) and feed rate, limited to what your spindle can do:
CNC Router Feeds and Speeds Calculator
For carbide router bits at 1,500 SFM. Chip loads are our wood chart values for a 1/2" bit (hardwood 0.0145", softwood 0.0152", plywood 0.0143", MDF 0.0131" per flute), scaled in proportion to the bit diameter; edit the chip load to override it. Feed rate = RPM × flutes × chip load. Hobby routers that aren't very rigid, deep cuts, and full-width slots may need lower feeds: reduce the chip load or the depth of cut rather than slowing the feed alone, which makes the bit rub and burn.
CNC Router Feeds and Speeds Chart for Wood
These are the starting values the calculator uses for carbide router bits. For a 1/2" bit, the chip loads come from our CNC Feeds and Speeds Chart for Wood: hardwood 0.0145", softwood 0.0152", plywood 0.0143", and MDF 0.0131" per flute, at 1,500 SFM. For other sizes, the chip load scales in proportion to the bit diameter:
| Bit Diameter | RPM at 1,500 SFM | Hardwood | Softwood | Plywood | MDF |
|---|---|---|---|---|---|
| 1/8" | 45,800 | 0.0036 | 0.0038 | 0.0036 | 0.0033 |
| 1/4" | 22,900 | 0.0073 | 0.0076 | 0.0072 | 0.0066 |
| 3/8" | 15,300 | 0.0109 | 0.0114 | 0.0107 | 0.0098 |
| 1/2" | 11,500 | 0.0145 | 0.0152 | 0.0143 | 0.0131 |
| 3/4" | 7,600 | 0.0218 | 0.0228 | 0.0215 | 0.0197 |
Chip loads are in inches per flute. The RPM column is what 1,500 SFM works out to; most router spindles top out around 18,000 to 24,000 RPM, so small bits usually run at the spindle's maximum. Multiply RPM x flutes x chip load to get the feed rate.
Why Chip Load Matters on a CNC Router
The most common mistake on a CNC router is running the feed rate too slow for the spindle speed. The chips get too thin, and the bit rubs instead of cutting. Rubbing heats the bit and burns the wood, and it dulls the bit much faster than cutting does. If your bit is getting hot or leaving burn marks, raise the feed rate or lower the RPM to bring the chip load back up. See our feeds and speeds guide for why.
If your router can't take the full feed rate (hobby routers often aren't rigid enough), take shallower cuts or narrower cuts instead of slowing the feed alone.
CNC Router Tips
- Pick the right bit. Upcut, downcut, and compression bits each handle tear-out and chip evacuation differently. See our guide to CNC router bits and our tips to avoid tear-out and splintering.
- Use carbide. Plywood and MDF are full of abrasive glue and grit that wear out HSS bits quickly.

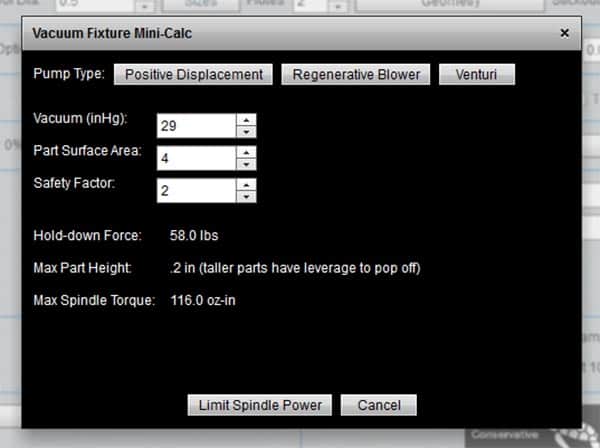

- Hold the work down. Fast feeds pull on parts. See our guide to vacuum tables.
- Cutting aluminum or plastic? Use our Milling Speeds and Feeds Calculator, and see our guide to cutting aluminum on a CNC router.

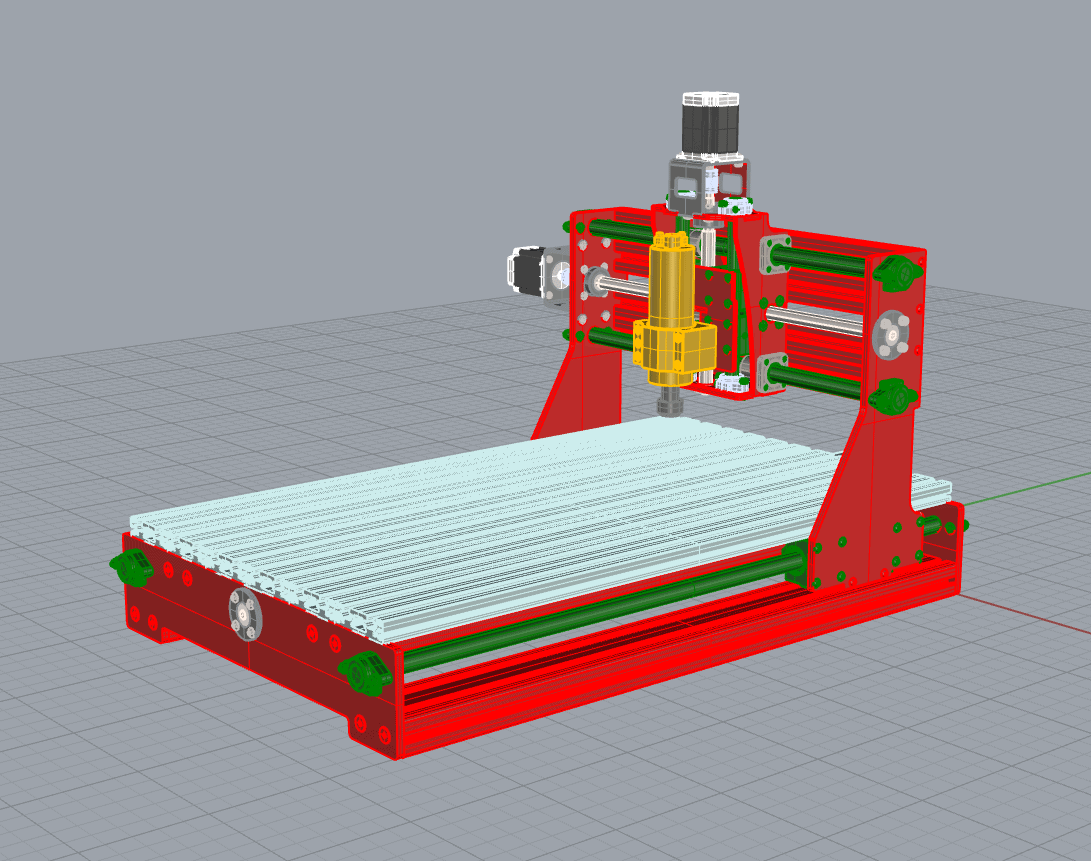

- New to CNC routers? Start with our complete guide to CNC routers.
