Pick a shape and a material, enter the dimensions, and this free metal weight calculator gives you the weight, the weight per foot (or meter), and the cost of plate, sheet, round bar, square and rectangular bar, hex bar, pipe, and tubing:
Metal Weight Calculator
Weight = cross-section area × length × density, times the quantity. Densities are typical values for each material (steel 0.2836 lb/in³, 7.85 g/cm³); alloys vary slightly. For angle, channel, I-beams, and structural tubing in standard sizes, use our Steel Beam and Structural Shape Calculator.
Metal Weight Formula
Every metal weight calculation works the same way:
Weight = Cross-Section Area x Length x Density
The cross-section area depends on the shape:
- Plate, sheet, and rectangular bar: width x thickness
- Round bar: 3.1416 / 4 x diameter squared
- Hex bar: 0.866 x (across flats) squared
- Round tube and pipe: 3.1416 / 4 x (OD squared - ID squared), where ID = OD - 2 x wall
- Square and rectangular tube: outside width x outside height - inside width x inside height
Use inches and lb/in³ to get pounds, or millimeters and g/cm³ (divide by 1,000,000 for kg per mm³) to get kilograms. Steel is about 0.2836 lb/in³ (7.85 g/cm³), and aluminum is about a third of that.
Metal Weight Calculator Examples
Steel Plate Weight

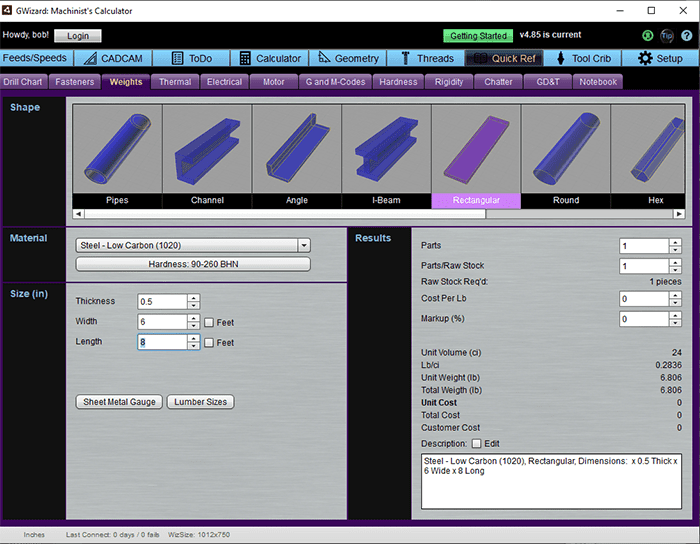

A 6" x 8" piece of 1/2" thick mild steel plate is 6 x 8 x 0.5 = 24 cubic inches, and 24 x 0.2836 = 6.81 lb. That's the calculator's default example.
Pipe Weight

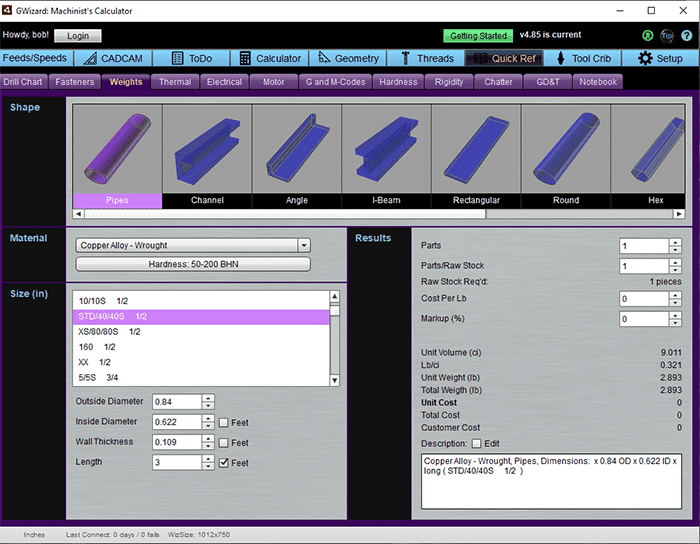

1/2" Schedule 40 pipe has an outside diameter of 0.840" and a wall of 0.109". Pick round tube or pipe, enter those, and choose copper: 3 feet (36") weighs about 2.92 lb.
How much does a Hex Bar weigh?

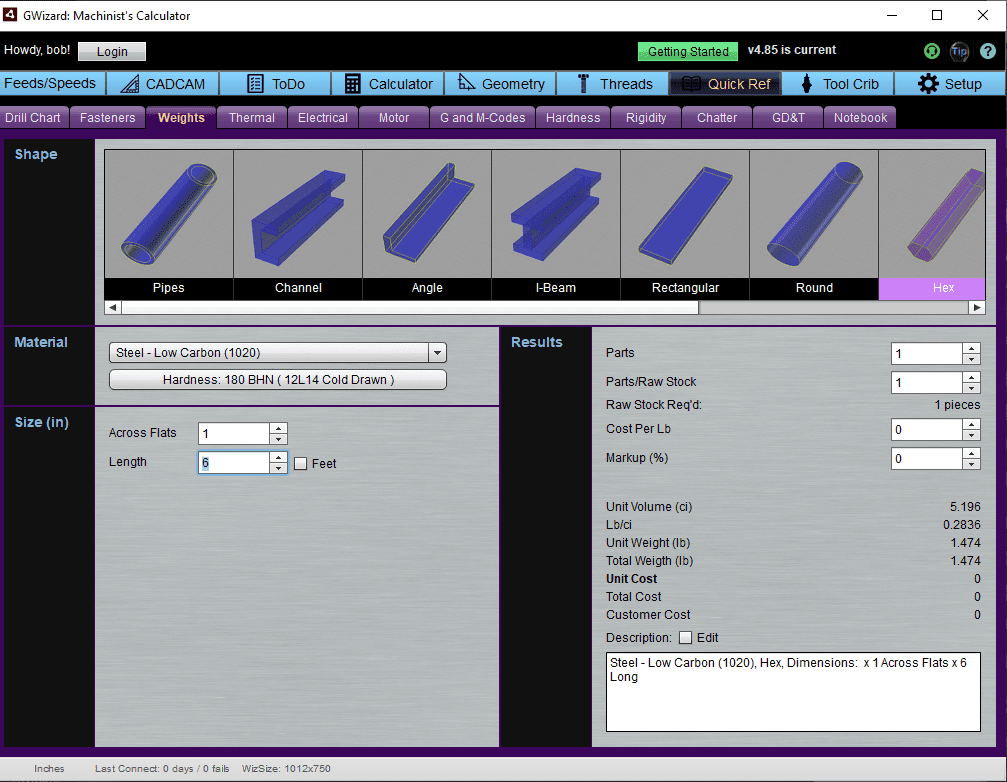

Hex Bars can be handy shapes to work with sometimes. Steel's 12L14 alloy is lovely to turn on a lathe. The added lead ("L") makes it cut like butter. A 1" hex bar (1" across flats) of 12L14 weighs about 2.95 lb per foot.
Round Bar and Cylinder Weight
Round bar and cylinder weights use the round bar shape: a 1" diameter steel bar weighs 2.67 lb per foot.
Sheet Metal Weight

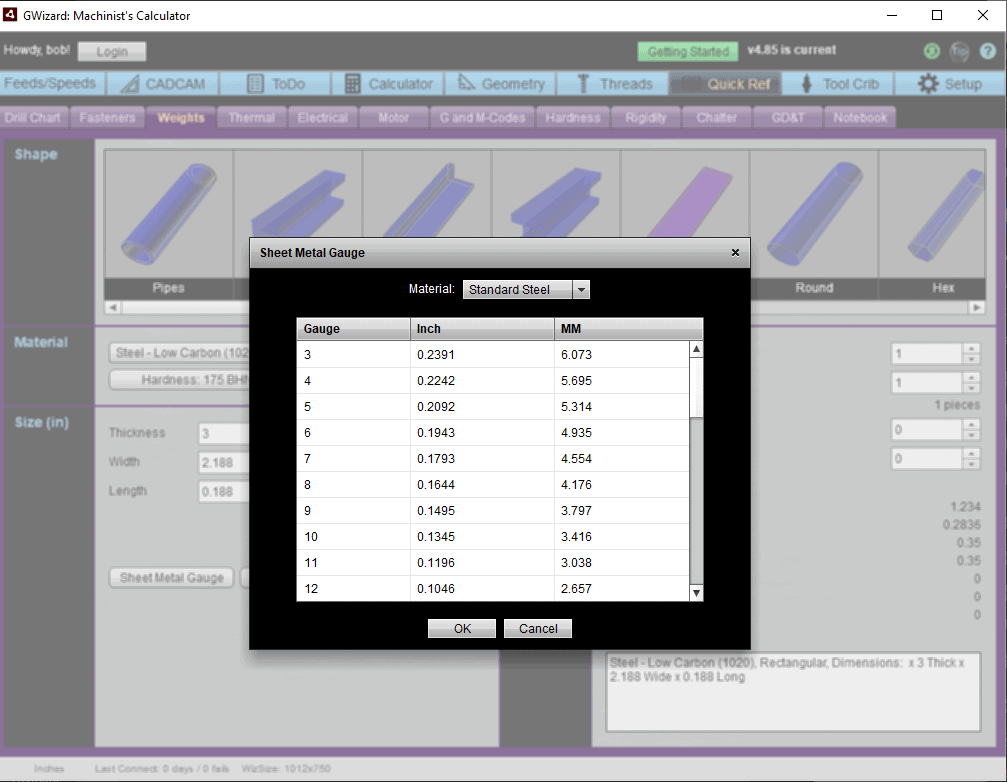

Sheet metal uses the plate shape with the sheet's thickness. Look up the thickness for a gauge number in our Sheet Metal Gauge Chart.

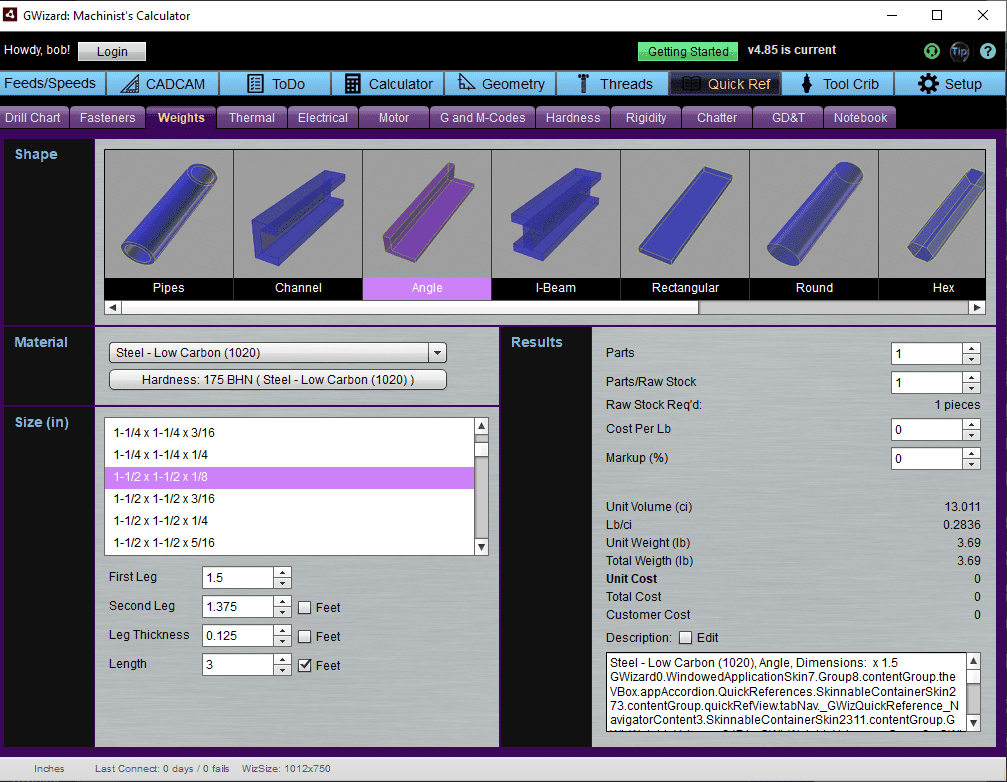

Angle, Channel, and I-Beam Weight
For standard structural shapes, use our Steel Beam and Structural Shape Calculator, which has the standard sizes of angle iron, channel, I-beams, and structural tubing built in.
