Pick a material (or enter your own coefficient of thermal expansion), the starting and final temperatures, and the length and/or diameter of the part, and this free thermal expansion calculator shows how much it grows or shrinks:
Thermal Expansion Calculator
Change = coefficient × size × (final − starting temperature). A bore grows the same as a solid of that diameter. Coefficients are typical room-temperature values; alloys vary, plastics especially, so check your material's data sheet when it matters. The standard reference temperature for measurements is 68°F (20°C).
Quick Answers
Thermal Expansion is a property affection all materials that causes them to change their dimensions as temperature changes. As the temperature goes up, they get longer, for example.
Machinists care about thermal expansion because it can affect their ability to hold tolerances.
A Thermal Expansion Calculator, also called a Temperature Expansion Calculator or a Heat Expansion Calculator, will tell you how much thermal expansion is happening with your project.
The calculator above shows how much a part or a bore grows or shrinks with temperature, and how much to heat a part for a shrink fit.
For the deep dive on thermal expansion, keep on reading below.
What is Thermal Expansion?
Whenever an object is heated or cooled, its length changes by an amount proportional to the original length and the change in temperature.
Thermal Expansion is important to machinists because they're trying to manufacture parts within tolerances. In many cases, thermal expansion can change the dimension of parts sufficiently that it should be compensated for.
Thermal Expansion Calculator
The calculator handles both kinds of thermal expansion machinists usually care about:
- Linear Thermal Expansion: This is suitable for basic measurements of long objects.
- Diameter (Ring) Thermal Expansion: This is helpful when considering thermal expansion of bores and shafts. A bore grows by the same amount as a solid part of the same diameter.
The coefficients are typical values for each material. I'd wait to see what that reveals, and if it's within a factor of 2x or so of worrying you, look up your exact material's coefficient and enter it.
The standard reference temperature for measurements is 68 degrees F (20 degrees C). Thermal Expansion is always calculated relative to a temperature change: the difference between the starting (reference) and final (target) temperatures.
Thermal expansion equation
You can find the Thermal Expansion Equation in our article on Thermal Expansion Equations.
Calculate Thermal Expansion of Steel
Let’s consider a simple problem you might use the calculator for. Too much bearing preload drives up temperatures, and in the worst case, it leads to thermal runaway which will destroy the bearings in a hurry. They get hot, they expand, that increases the preload, which raises the friction, which makes them hotter, so they expand more, yada, yada.
We can use the calculator above to see how much expansion we're talking about. Imagine we want to run our spindle bearings up to the point where they’re at 140 degrees. I’ve come across a number of references calling for this as a good goal or maximum for bearing temperature. Less and you don’t have as much preload as you could. More, and you may have the thermal runaway situation or break down your bearing grease.

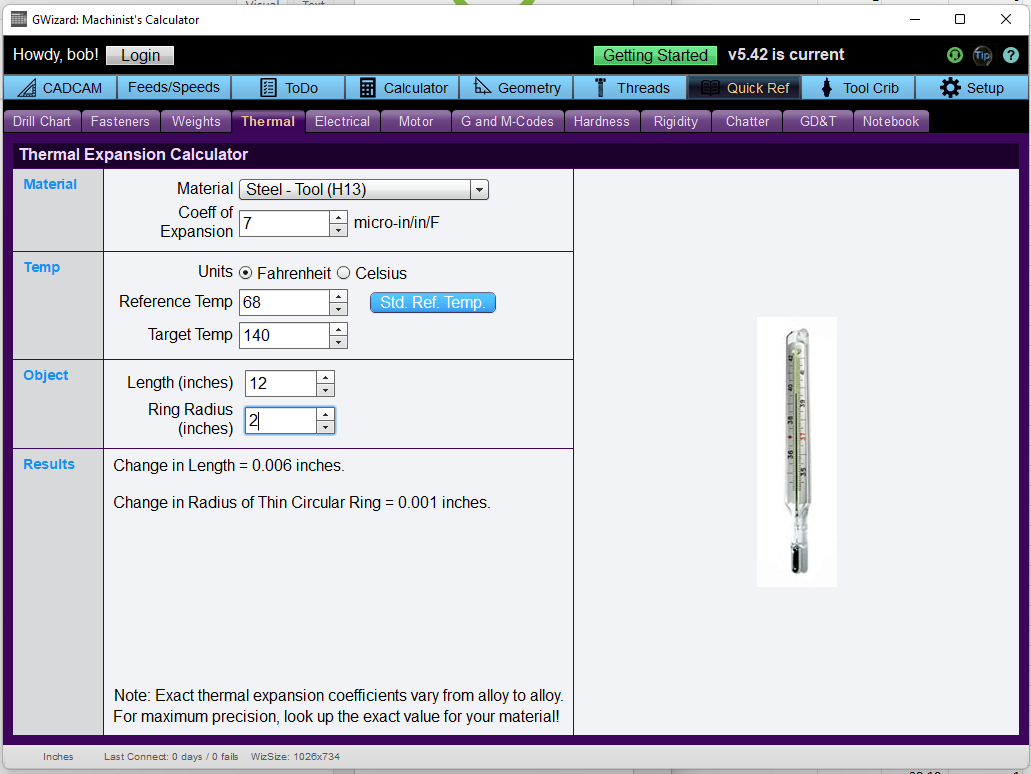

We can see that for a spindle 12″ long (object length) and 2″ in diameter, if we assume we’re starting from the reference temp (initial temperature) and running up to a final temperature of 140 degrees, we will see that spindle grow 0.006″ longer and 0.001″ larger in diameter. That’s pretty significant when bearing tolerances are measured in tenths!
Or, consider a CNC machine’s leadscrew. Let’s say it is 30″ long. It is precisely calibrated at the reference temperature, but we’re running the machine on a hot day and we’re spinning the heck out of that lead screw. So it creeps up to 98 degrees final temperature or so. How much longer did it get?
Turns out it grew about 0.0063″. Heck, even if you’re only machining a part that requires you to use 6″ of travel, that’s a difference of 0.0013″ in length that goes against the accuracy of your handwheels or of your calibrated CNC servos or steppers. That’s a lot of error!
Hence manual machines benefit from DRO’s that tell how far the axis really moved and CNC machines benefit from scales that are essentially DRO’s telling the controller the same thing.
In some cases the CNC may rely on a temperature sensor to estimate, but the scale is a better solution because it tells how far the axis really moved and allows you to ignore thermal expansion (for the most part).
Aluminum Thermal Expansion Calculator
Aluminum has a much higher Coefficient of Thermal Expansion than Steel. Since we are often machining aluminum, this can have a real impact on our tolerances.

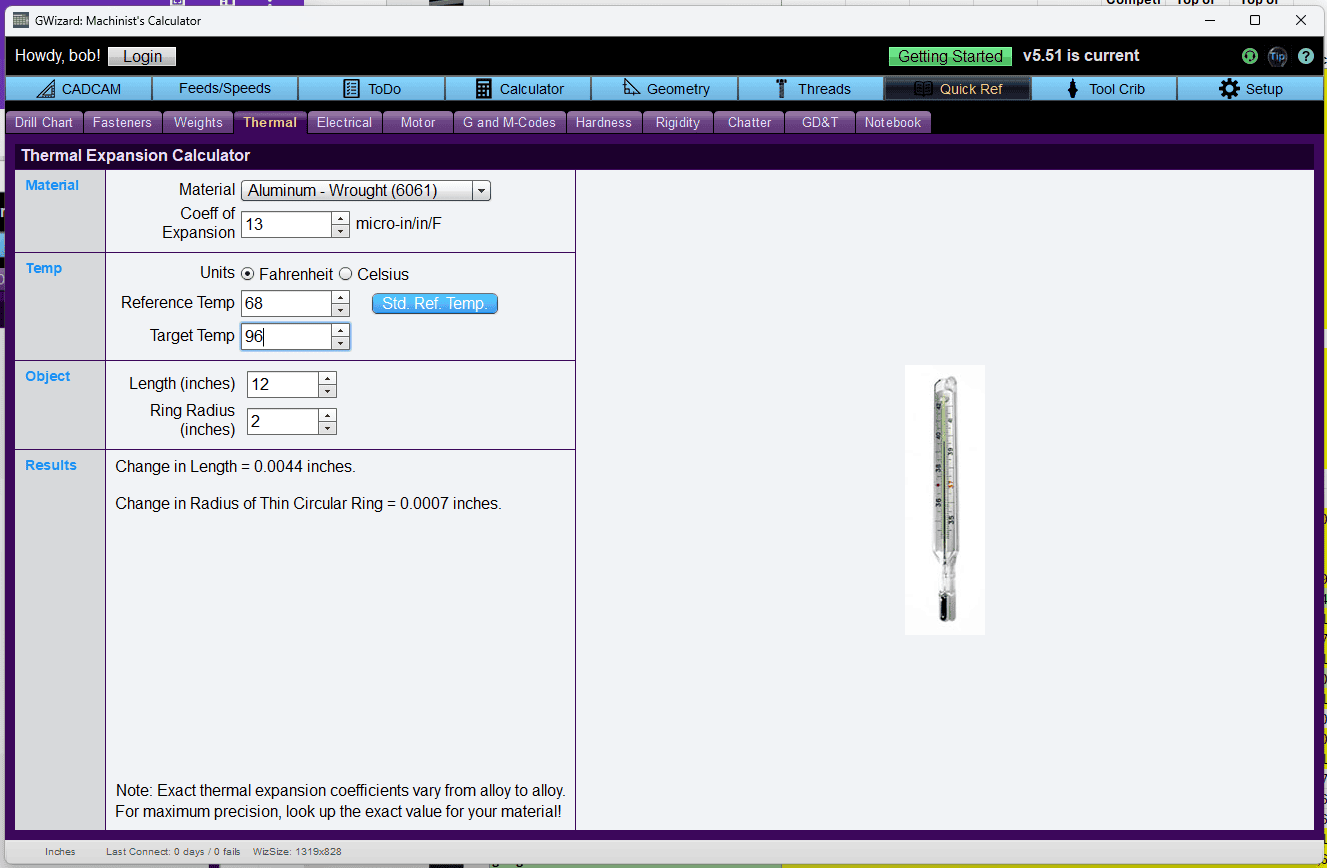

Pick aluminum in the calculator above and you'll see that just a warm summer day can impact aluminum almost as much as our 140F bearing calculation above. Use the calculator to figure out what's going on in your aluminum parts due to temperature effects.
How to Reduce Thermal Expansion
When doing high-tolerance machining and manufacturing work, it is important to reduce thermal expansion as much as possible.
There are 4 basic ways to reduce thermal expansion or its impact:
- Reduce contact with heat sources.
- Control the environment.
- Allow thermal stabilization.
- Correct for thermal expansion.
Note that your own body heat is a thermal source that can cause thermal expansion. In terms of reducing contact with heat sources, try to avoid:
- Body heat
- Equipment that generates heat
- Windows
- Sunlight
- HVAC vents
- Objects with a different temperature.
Heat will flow from a warmer object to a colder object until it reach thermal equilibrium. The larger the temperature difference, the faster the heat will flow between the two.
The best Metrology Labs use a controlled temperature room.
Lastly, place the objects you will be working with together in the temperature-controlled environment so that they can reach thermal equilibrium.
